APV1000 high pressure homogenizer
The sharp dual homogenization and crushing function homogenization valve can help develop more advanced product emulsification and crushing and discover the results of intracellular products.
Two-stage homogenizing valve. The material of the homogenizing valve can be ceramic or tungsten carbide.

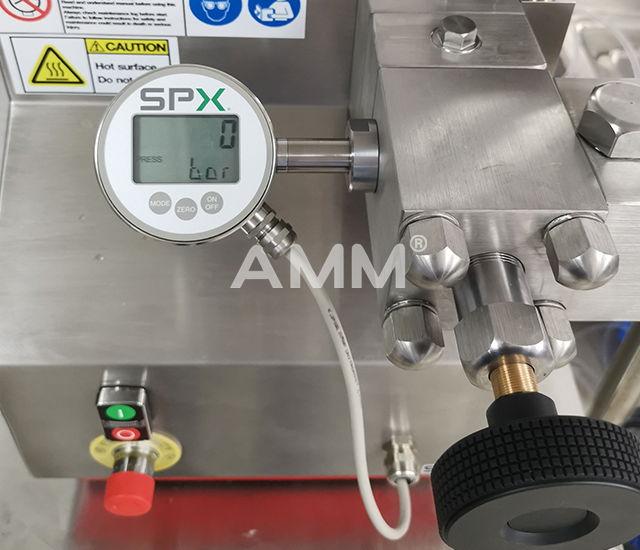

Easy-to-read digital display pressure gauge and electronic overpressure protection system.
Small feet-easy to put on the experimental table.
Replaceable and interchangeable tungsten carbide pump valve seat.
Smooth, quiet and reliable operation
|
BRAND |
AMM |
AMM |
|
Model |
APV1000 |
APV2000 |
|
Volume |
22 L/hr |
11 L/hr |
|
Smallest sample |
150 mL |
50 mL |
|
Working pressure |
1000 Bar |
2000 Bar |
|
Plunger diameter / material |
14 mm/ ceramics |
10 mm/ ceramics |
|
Plunger washer |
PVDF/EPDM |
PVDF/EPDM |
|
O-ring / washer |
EPDM/POM |
EPDM/POM |
|
Pump valve seat material |
Tungsten carbide alloy |
Tungsten carbide alloy |
|
Pump valve |
Cobalt alloy |
Cobalt alloy |
|
Homogenizing valve / seat |
ceramics |
ceramics |
|
Digital pressure display |
Yes |
Yes |
|
Overcurrent pressure safety device |
Yes |
Yes |
|
Net weight |
105 Kg |
105 Kg |
|
Dimensions |
370 x 818 x 620 mm |
370 x 818 x 620 mm |
|
Motor |
TEFC,3kw,three-phase/ 50-60Hz, 200, 230, 380, 400, 460, 575 volts |
|
Feed pump with air pressure adjustment
Explosion-proof design
Two-stage homogeneous valve group design
Aseptic cylinder design
Digital display and adapted table for second-level pressure display
