High shear dispersion ultrasonic reactor AIR-300L series high shear reactor
| Model： | AIR-300L High shear reactor |
| Reactor system | |
| Reactor: single layer 300L stainless steel reactorKettle body material: SS304
Design full volume: 350L Working volume: 300L Kettle lid form: semi-open lid (can be directly fed) Discharge method: manual ball valve discharge Kettle body structure: upper and lower half open cover, lower head Working pressure: normal pressure Installation method: three outrigger installation Polishing standard: 1.6 finish, food hygiene standard |
|
| High shear system | |
| Device model: A140-7.5kwPower supply: 380V / 50HZ / 6P
Power: 4.5KW Speed: 2900rpm Motor: frequency conversion Brand: ABB or other Protection level: IP54 Insulation class: F Contact material: SUS316L Non-contact materials: SUS304 Working head model: 140BC (claw structure) Installation method: flange connection |
|
| Ultrasonic cleaning system | |

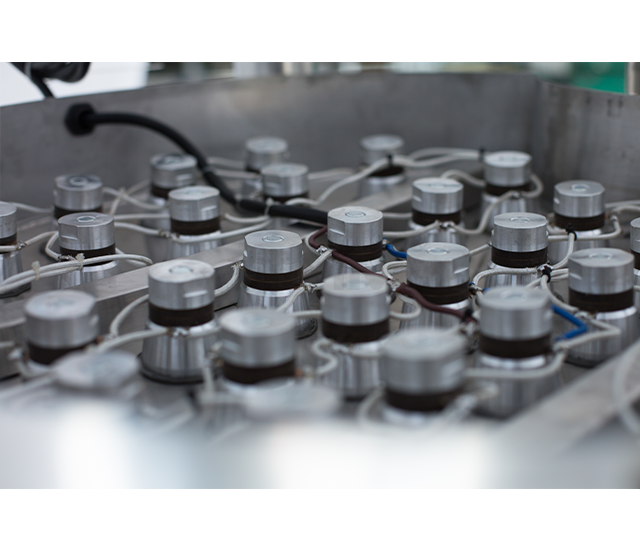

| Power output: 40 * 60wFrequency: 40Khz
Number of vibrators: 40 Cleaning controller: 1 |
|
