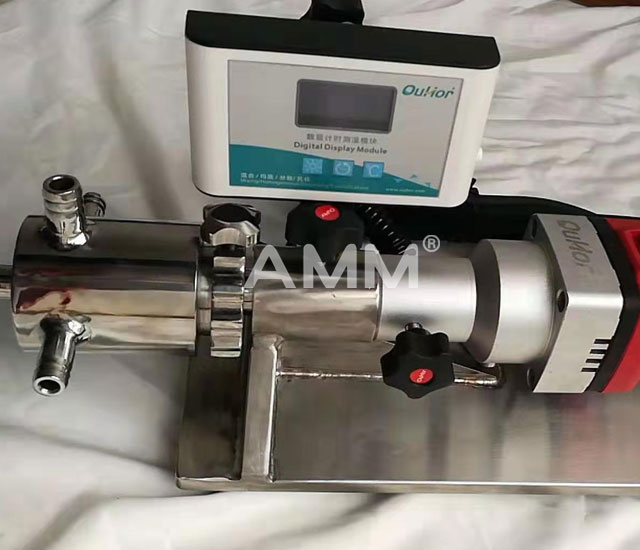

MDS30 LABORATORY HIGH SHEAR
High-speed motors imported from Germany: Long life design, stable and continuous operation for more than 4 hours
Stepless speed regulation system: The maximum speed can reach 28000rpm, and the maximum cutting line speed is 27m / s
The structure design of the whole machine is reasonable: excellent materials selection and hand-held operation
Highly modular design of equipment: 18 different dispersing heads can be selected to meet your different working environments (closed, open, normal pressure, vacuum)
Overload protection, double protective insulation
Excellent material selection:The working head is made of stainless steel,which can be reused and flexibly assembled,in compliance with GMP hygiene standards
|
Model |
MDS25 |
|
Power |
220V/50Hz |
|
Motor power |
500W |
|
Speed range |
10000~28000rpm |
|
Volume range(H2O) |
1-15L/min |
|
Viscosity max. |
10000CP |
|
Speed control |
Scale display (optional digital display) |
| Standard working cavity: | Stainless steel jacketless working chamber |
| Standard working head: | 20DG |
| Contact logistics materials: | SUS316L |
| Mechanical seal material: | SiC, FKM, ceramic |
| health standard: | GMP medical and health standards |
| Inlet and outlet diameter: | 14 (hose connection) |
| Dimensions: | 477 × 120 × 122mm |
| Working bracket | Stainless steel standard |
| Allowed ambient temp: | 5-40 ° |
| Allowed ambient humidity: | 80% |
| Package weight: | 6KG carton foam packaging |
