M30-Digital laboratory High Shear

Short Description:

Suitable for multiple processes: homogenization / emulsification / depolymerization / dispersion / vaccine / fat milk / pesticides / yoghurt / textile auxiliaries / suspension / fruit juice / cell disruption / oil-water emulsification / coal slurry / cosmetics / asphalt / pigment / flavor / Tissue homogenate. M30 laboratory high-shear emulsification machine has high efficiency, light weight, and complete machine module structure, which is easy to operate and can run for a long time, easily meeting various requirements.




Features

Technical Data

Video

Accessories

Product Tags

High-speed motors imported from Germany: Long life design, stable and continuous operation for more than 4 hours

Stepless speed regulation system: The maximum speed can reach 28000rpm, and the maximum cutting line speed is 27m / s

The structure design of the whole machine is reasonable: excellent materials selection  and hand-held operation

Highly modular design of equipment: 18 different dispersing heads can be selected to meet your different working environments (closed, open, normal pressure, vacuum)

Overload protection, double protective insulation

Excellent material selection:

The working head is made of stainless steel, which can be reused and flexibly assembled, in compliance with GMP hygiene standards

M30-disperser

  • Previous:
  • Next:

  • Model

    M30 digital

    Power

    220V/50Hz

    Motor power

    1050W

    Speed range

    5000-25000rpm

    Volume range(H2O)

    500-10000ml

    Viscosity max.

    30000cp

    Speed control

    Electronic Stepless

    Timer

    LED

    Speed display

    LED

    Standard Dispersing tool

    30BC

    Medium-contact material

    SUS316L

    Shaft sleeve material

    PTFE(Optional ceramic)

    Hygiene standard

    GMP medical standard

    Process type

    Batch processing

    Carton Dimensions

    320*220*830mm

    Stand type

    Standard

    Weight

    8KG

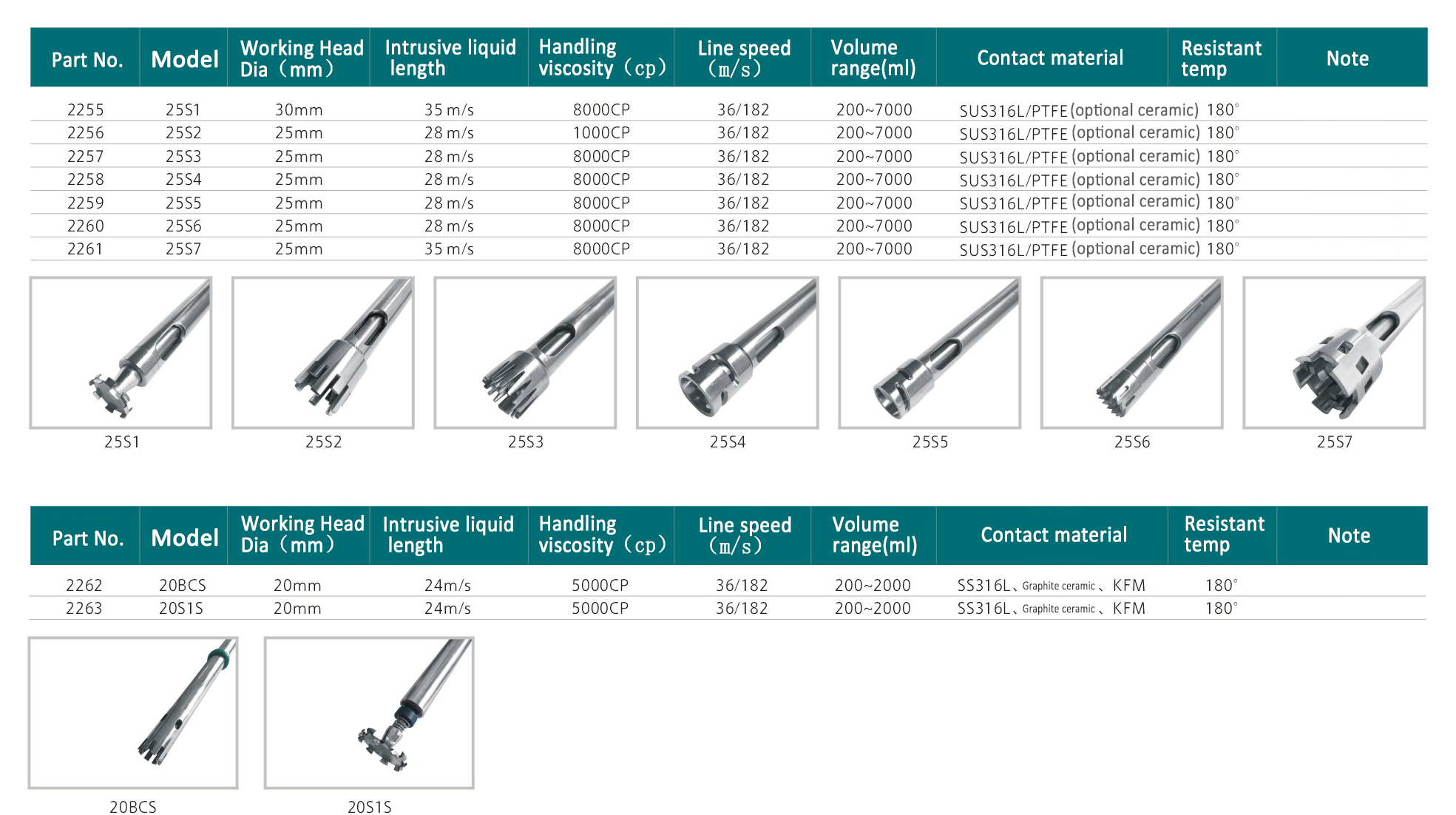

    accessories1 accessories2
