Magnetic Stirrer
Advanced technology platform design: brushless motor, one-piece molding aluminum alloy shell, seamless anti-corrosion ceramic panel
Real-time full-screen display: display including speed, temperature, timing and related system status
Original touch-type knob design: easy to operate and prevent liquid leakage or condensation inside the body
Precise temperature control system: efficient heating system with composite structure, rapid heating, high efficiency, energy saving, and precise control
|
Model |
AMS-181E |
AMS-151E |
AMS-171E |
AMS-121E |
AMS-121B |
|
Power |
220V, 50/60Hz |
||||
|
Motor power |
5w |
||||
|
Speed range |
100~1800rpm |
100~1800rpm |
100~1800rpm |
100~1800rpm |
100~1800rpm |
|
Volume range(H2O) |
20L |
||||
|
Clockwise / counterclockwise stirring |
◆ |
◆ |
◆ |
◇ |
◇ |
|
Heating power |
600W |
600W |
300W |
◇ |
◇ |
|
Heating temp rise rate |
6.5℃/min |
6.5℃/min |
4℃/min |
◇ |
◇ |
|
Temperature range |
Room temp~340℃ |
Room temp~280℃ |
◇ |
◇ |
|
|
Adjustable safety range |
50~370℃ |
50~300℃ |
◇ |
◇ |
|
|
Precision control temp |
±1 ℃ |
◇ |
◇ |
||
|
External temp sensor |
Pt1000 (temperature control accuracy ± 1 ℃) |
◇ |
◇ |
||
|
External temp measuring |
OES-061F (temperature control accuracy ± 0.5 ℃) |
◇ |
◇ |
||
|
Timing function |
0 ~ 9 hours |
◇ |
0 ~ 9 hours |
◇ |
|
|
Display mode |
LCD |
LED scale |
|||
|
Stirrer length |
20~80mm |
||||
|
Material of heating plate |
aluminum alloy |
stainless steel / ceramic |
stainless steel |
stainless steel / ceramic |
|
|
Shell material |
aluminum alloy |
||||
|
Heating plate size |
Ø135mm |
||||
|
Dimensions |
175×270×76mm |
||||
|
Working temp |
5~40℃ |
||||
|
Working humidity |
80% |
||||
|
Protection degree |
IP42 (the panel has no risk if liquid spills) |
||||
|
Weight |
2.6KG |
2.6KG |
2.6KG |
2.5KG |
2.5KG |
External temperature sensor: Pt1000 (temperature control accuracy ± 1 ℃)

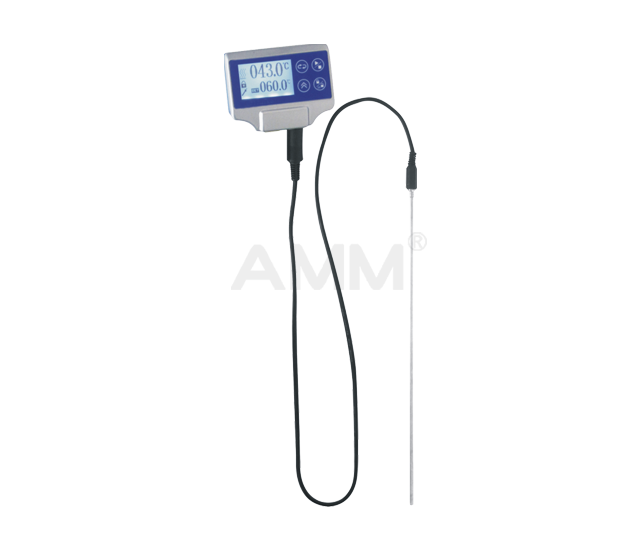

External contact temperature measuring instrument: OES-061F (temperature control accuracy ± 0.5 ℃)
Sensor bracket: strut + horizontal chuck + horizontal insert
Stirrer: high temperature 350 ℃
Suction rod: Stirrer suction rod
