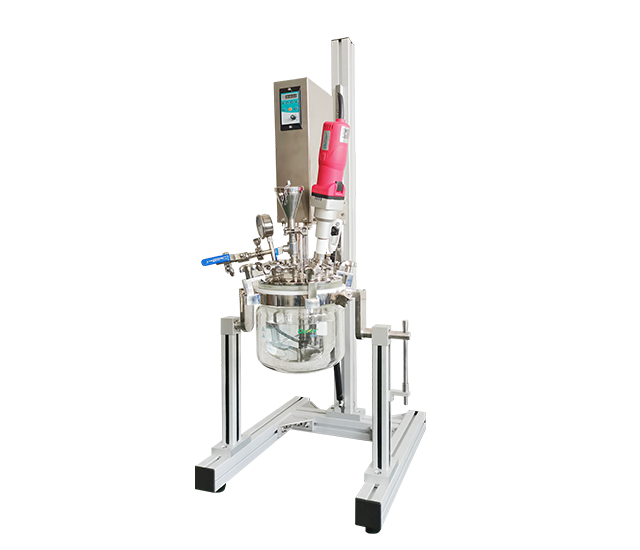

SE SERIES LAB VACUUM REACTOR

Short Description:

The processing capacity of the SE series is 0.5L, 1L, 2L, 5L, 10L and other model. It can realize the process of material dispersion, emulsification, homogenization, and mixing under vacuum or pressure environment. It can be equipped with a variety of high-efficiency macro mixers (optional), high-shear homogeneous emulsifier (optional), and reliable vacuum sealing system and temperature control system. A variety of sensor detection systems can simulate industrial production in a laboratory environment. It is a good choice for conventional complete laboratory equipment and meets all simulation conditions of complete equipment


Features

Technical Data

Video

Product Tags

The equipment is highly modular and can be equipped with various functional systems. High speed motor imported from Germany, long life design, stable operation. Lightweight design of the entire system, integrating a small lifting system. Stepless speed regulation, the maximum speed can reach 30,000rpm, and the maximum cutting line speed is 27m / s for you. Meet your different working environment (closed, open, normal pressure, vacuum, gas protection, high temperature, low temperature)The working head is made of stainless steel, which can be reused and meets hygienic standards. Modular design of equipment, any system can be flexibly combined. Add any other custom

SE

  • Previous:
  • Next:

  • BRAND

    AMM

    AMM

    AMM

    AMM

    Model

    SE-1L

    SE-2L

    SE-5L

    SE-10L

    Power

    220V/50/60Hz

    Stirring volume

    0.3~1L

    0.5~2L

    1~5L

    3~10L

    Emulsification volume

    0.6-1L

    1~2L

    2~5L

    5~10L

    Max working temp

    120 ° (optional high temperature)

    Heating method

    water bath, oil bath circulation

    Vacuum condition

    -0.096Mpa (positive pressure optional)

    Viscosity max.

    70000CP

    Mixer power

    120W

    180W

    Mixer speed

    13 ~ 200rpm (high speed optional)

    Mixer agitator

    Anchor scraper (optional spiral belt)

    Scraper material

    Silicone rubber (optional PTFE hard scraper)

    Homogenizer power

    500W

    1050W

    Homogenizer speed

    10000 ~ 28000rpm

    5000rpm~25000rpm

    Speed display

    LCD display (digital display timing)

    Homogenizer head model

    20BCS

    25BCS

    Openings on cover

    Homogenizer opening, hopper opening, temp measurement opening, vacuum opening,3 spare opening

    Bracket lifting method

    Electric auto lift (semi-auto cylinder lifting optional)

    Lifting height

    210mm

    280mm

    Medium-contact material

    SUS316L stainless steel PTEF borosilicate glass

    Reactor body material

    borosilicate glass (SUS316L stainless steel container is optional)

    Outer Dia. vacuum opening

    10mm

    Jacket inlet/outlet size

    12mm

    Wooden Dimensions

    600 * 400 * 680mm

    Weight

    35KG

    37KG

    40KG

    45KG
